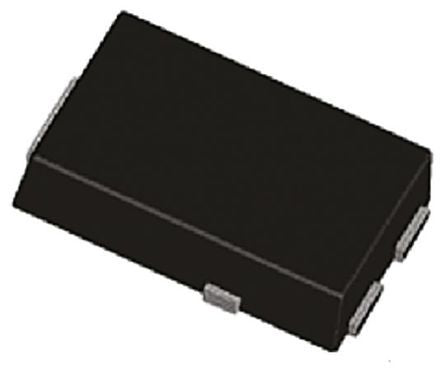

Vishay 100V 10A, Diode, 3-Pin TO-277A V10P10-M3/86A [V10P10-M3/86A]; 919-0764
by Vishay
0₫
Mã kho: 9190764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | TO-277A |
| Maximum Continuous Forward Current | 10A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Single |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 620mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 180A |
