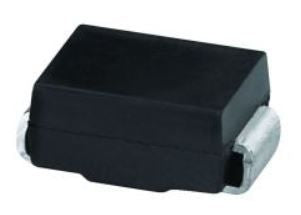

Vishay 50V 2A, Diode, 2-Pin DO-214AA ES2A-E3/52T [ES2A-E3/52T]; 178-0942
by Vishay
0₫
Mã kho: 1780942
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Continuous Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 50V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 900mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 30ns |
| Peak Non-Repetitive Forward Surge Current | 50A |
