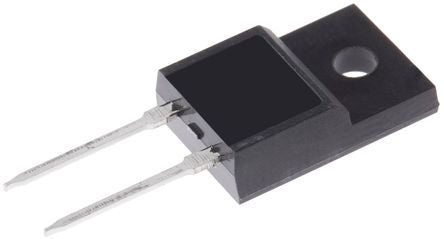

ROHM 650V 6A, Diode, 2+Tab-Pin TO-220FM SCS206AMC [SCS206AMC]; 133-2858
by ROHM
0₫
Mã kho: 1332858
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220FM |
| Maximum Continuous Forward Current | 6A |
| Peak Reverse Repetitive Voltage | 650V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | SiC Schottky |
| Pin Count | 2 + Tab |
| Maximum Forward Voltage Drop | 1.63V |
| Number of Elements per Chip | 1 |
| Diode Technology | SiC Schottky |
| Peak Non-Repetitive Forward Surge Current | 91A |
