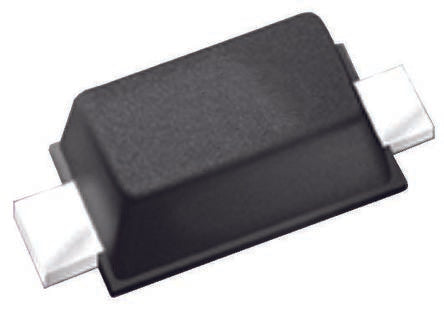

Panasonic 40V 1A, Diode, 2-Pin Mini2-F3-AB DB2W40100L [DB2W40100L]; 787-7573
by Panasonic
0₫
Mã kho: 7877573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | Mini2-F3-AB |
| Maximum Continuous Forward Current | 1A |
| Peak Reverse Repetitive Voltage | 40V |
| Diode Configuration | Single |
| Diode Type | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 390mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Reverse Recovery Time | 15ns |
| Peak Non-Repetitive Forward Surge Current | 30A |
