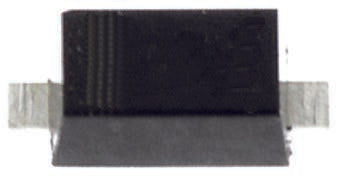

Panasonic 30V 200mA, Diode, 2-Pin SSMini2 F5 B DB2S31100L [DB2S31100L]; 712-5872
by Panasonic
0₫
Mã kho: 7125872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SSMini2 F5 B |
| Maximum Continuous Forward Current | 200mA |
| Peak Reverse Repetitive Voltage | 30V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 560mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Reverse Recovery Time | 2.2ns |
| Peak Non-Repetitive Forward Surge Current | 1A |
