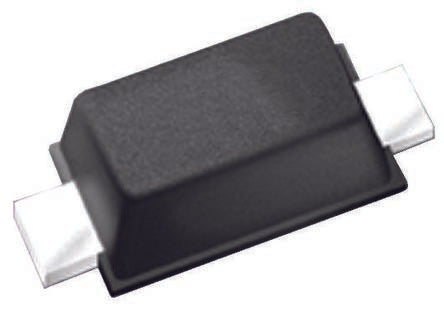

Panasonic 30V 2A, Diode, 2-Pin TMiniP2-F2-B DB2430100L [DB2430100L]; 169-8035
by Panasonic
0₫
Mã kho: 1698035
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | TMiniP2-F2-B |
| Maximum Continuous Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 30V |
| Diode Configuration | Single |
| Diode Type | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 390mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Reverse Recovery Time | 21ns |
| Peak Non-Repetitive Forward Surge Current | 30A |
