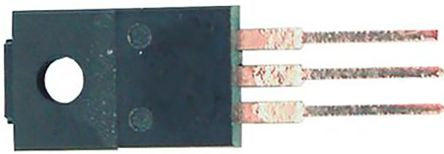

ON Semi 45V 20A, Dual Diode, 3-Pin TO-220FP MBRF2045CTG [MBRF2045CTG]; 145-3056
0₫
Mã kho: 1453056
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220FP |
| Maximum Continuous Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 840mV |
| Number of Elements per Chip | 2 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 150A |
