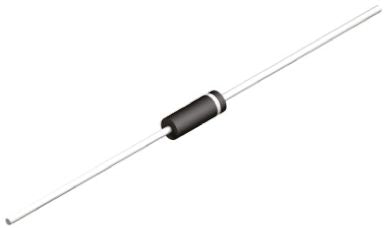

ON Semi 400V 2A, Diode, 2-Pin DO-15 EGP20G [EGP20G]; 166-3383
0₫
Mã kho: 1663383
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | DO-15 |
| Maximum Continuous Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 400V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 50ns |
| Peak Non-Repetitive Forward Surge Current | 75A |
| Diameter | 3.6mm |
