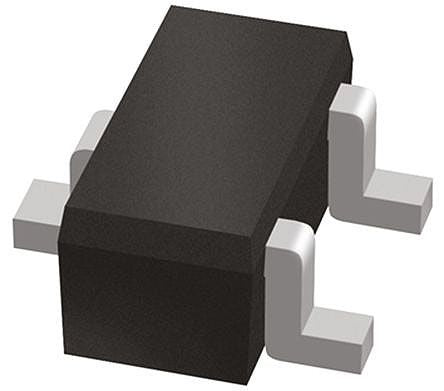

ON Semi 80V 100mA, Dual Diode, 3-Pin SOT-416 DAP222G [DAP222G]; 145-2898
0₫
Mã kho: 1452898
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOT-416 (SC-75) |
| Maximum Continuous Forward Current | 100mA |
| Peak Reverse Repetitive Voltage | 80V |
| Diode Configuration | Common Anode |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.2V |
| Number of Elements per Chip | 2 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 10ns |
| Peak Non-Repetitive Forward Surge Current | 2A |
