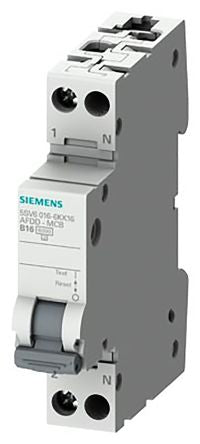

6 kA RCBO, DIN Rail Mount SENTRON 5SV6016 [5SV6016-6KK16]; 189-3185
by Siemens
0₫
Mã kho: 1893185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | SENTRON |
| Series | 5SV6016 |
| Current Rating | 16 A |
| Number of Poles | 2 |
| Mounting Style | DIN Rail |
| Reset Actuator Type | Toggle Switch |
| Circuit Breaker Type | AFDD + MCB |
| Special Features | Arc Fault Detection Device, Electric Fire Protective Device |
| Terminal Contact Type | Screw |
| Rated AC Voltage | 230 V |
| Overall Width | 18mm |
| Standards Met | CE |
| Breaking Capacity | 6 kA |
| Overall Depth | 68.5mm |
| Overall Dimensions | 68.5 x 18 x 90mm |
| Overall Length | 90mm |
| Tripping Characteristics | Type B |
