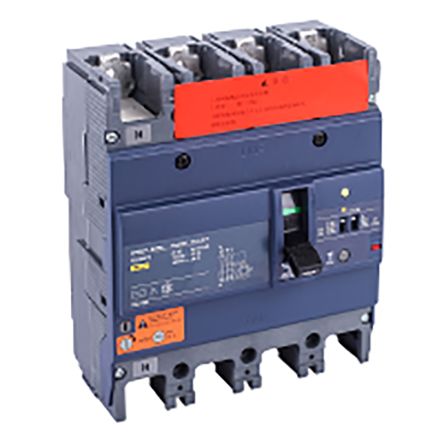

3P 20 (440 V) kA, 25 (380 / 415 V) kA, 50 (220 / 230 V) kA 63 A RCBO, Fixed Mount, Trip Sensitivity 63A EZD Vigi EZD160E [EZD160E3063ELN]; 179-9768
0₫
Mã kho: 1799768
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Range | EZD |
| Series | Vigi EZD160E |
| Current Rating | 63 A |
| Trip Sensitivity | 63A |
| Number of Poles | 3 |
| Mounting Style | Fixed Mount |
| Rated AC Voltage | 440 V |
| Application | Distribution |
| Overall Dimensions | 105 x 165 x 68mm |
| Reset Actuator Type | Toggle Switch |
| Circuit Breaker Type | RCBO |
| Overall Width | 165mm |
| Overall Length | 105mm |
| Tripping Mechanism | Thermal-Magnetic |
| Breaking Capacity | 20 (440 V) kA, 25 (380 / 415 V) kA, 50 (220 / 230 V) kA |
| Break Time | Instantaneous |
| Overall Depth | 68mm |
| Tripping Characteristics | Type D |
| Terminal Contact Type | Screw |
