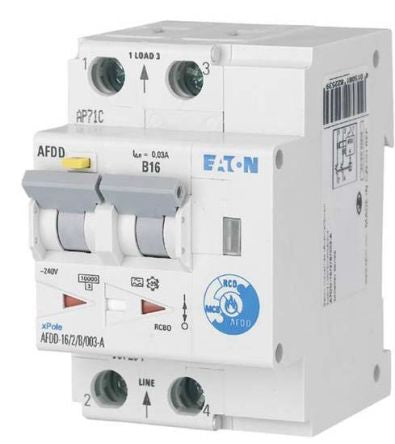

2P 10 kA 16 A RCBO, DIN Rail, Trip Sensitivity 30mA [187204]; 146-2818
by Eaton
0₫
Mã kho: 1462818
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | AFDD+ |
Current Rating | 16 A |
Trip Sensitivity | 30mA |
Number of Poles | 2 |
Mounting Style | DIN Rail |
Earth Leakage Protection Type | AC |
Terminal Contact Type | Screw |
Special Features | Arc Fault Detection Device, Electric Fire Protective Device |
Circuit Breaker Type | AFDD + RCBO |
Reset Actuator Type | Toggle Switch |
Overall Width | 80mm |
Standards Met | IEC/EN 62606 |
Overall Depth | 70mm |
Break Time | Instantaneous |
Breaking Capacity | 10 kA |
Rated AC Voltage | 240 V |
Tripping Characteristics | Type B |
Overall Length | 54mm |
Overall Dimensions | 54 x 70 x 80mm |
