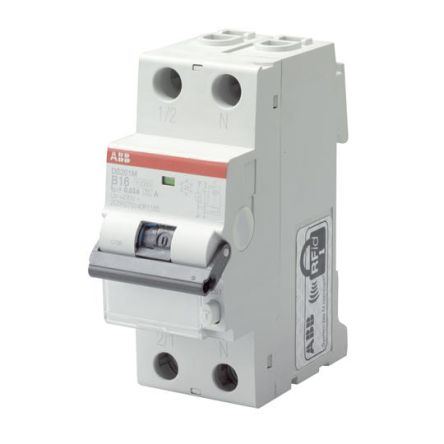

1P+N 4.5 kA 16 A RCBO, DIN Rail, Trip Sensitivity 30mA DS201 [471013]; 183-3701
by ABB
0₫
Mã kho: 1833701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | DS201 |
| Current Rating | 16 A |
| Trip Sensitivity | 30mA |
| Number of Poles | 1+N |
| Mounting Style | DIN Rail |
| Overall Width | 69mm |
| Circuit Breaker Type | RCBO |
| Special Features | Protection Against Direct Contacts, Protection Against Earth Fault, Protection Against Indirect Contacts |
| Overall Length | 35mm |
| Overall Depth | 85mm |
| Rated AC Voltage | 230 → 240 V |
| Breaking Capacity | 4.5 kA |
| Standards Met | EN 61009-1, EN 61009-2-1, IEC 61009-1, IEC 61009-2-1 |
| Tripping Characteristics | Type C |
