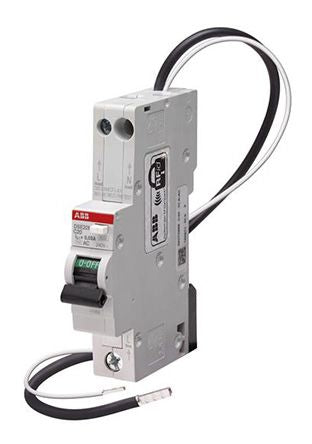

1P+N 10 A RCBO, DIN Rail Mount, Trip Sensitivity 30mA System M Pro DSE201 [2CSR255051R1104]; 914-4042
by ABB
0₫
Mã kho: 9144042
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | System M Pro |
Series | DSE201 |
Current Rating | 0.416666666666667 |
Trip Sensitivity | 30mA |
Number of Poles | 1+N |
Mounting Style | DIN Rail |
Terminal Contact Type | Screw |
Tripping Characteristics | Type C |
Overall Width | 100mm |
Reset Actuator Type | Toggle Switch |
Circuit Breaker Type | RCBO |
Tripping Mechanism | Thermal-Magnetic |
Overall Length | 17.5mm |
Overall Dimensions | 17.5 x 100 x 68.9mm |
Application | Industrial |
Overall Depth | 68.9mm |
Special Features | Earth Fault Current Protection, Overload Protection, Protection Against Indirect Contacts, Protection Against Short-Circuit Currents |
Rated AC Voltage | 240 V |
