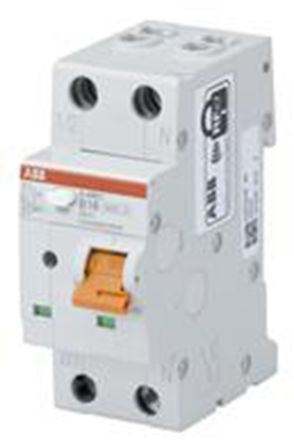

1P 6 kA 16 A RCBO, DIN Rail AFDD S-ARC1 [2CSA255901R9165]; 175-9929
by ABB
0₫
Mã kho: 1759929
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Range | S-ARC1 |
Series | S-ARC1 B16 |
Current Rating | 16 A |
Number of Poles | 1+N |
Mounting Style | DIN Rail |
Overall Width | 35mm |
Reset Actuator Type | Toggle Switch |
Application | Hotel, Houses, Private Apartments |
Circuit Breaker Type | AFDD + MCB |
Special Features | Arc Fault Detection Device, Electric Fire Protective Device |
Terminal Contact Type | Screw |
Earth Leakage Protection Type | ARC |
Overall Dimensions | 35 x 85 x 69mm |
Overall Depth | 69mm |
Overall Length | 85mm |
Tripping Mechanism | Thermal-Magnetic |
Tripping Characteristics | Type B |
Rated AC Voltage | 240 V |
Breaking Capacity | 6 kA |
