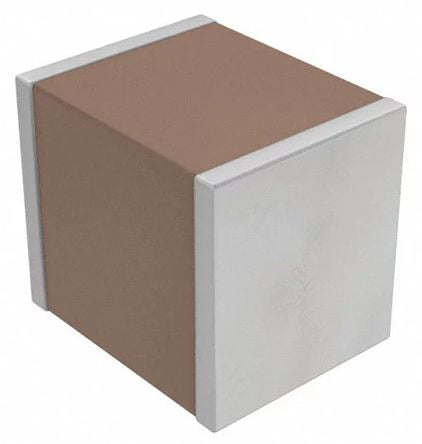

TDK 1210 (3225M) 3.3μF MLCC 50V dc ±20% SMD CGA6P3X7R1H335M250AB [CGA6P3X7R1H335M250AB]; 144-7111
by TDK
0₫
Mã kho: 1447111
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3.3 µF |
| Voltage | 50 V dc |
| Package/Case | 1210 (3225M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±20% |
| Dimensions | 3.2 x 2.5 x 2.5mm |
| Length | 3.2mm |
| Automotive Standard | AEC-Q200 |
| Depth | 2.5mm |
| Height | 2.5mm |
| Series | CGA |
| Minimum Operating Temperature | -55°C |
| Terminal Type | Solder |
| Suppression Class | Class II |
| Maximum Operating Temperature | +125°C |
