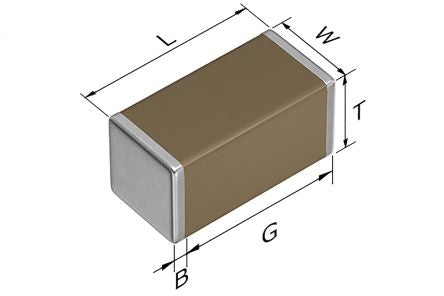

TDK 1206 (3216M) 2.2μF MLCC 25V dc ±10% SMD CGA5L3X8R1E225K160AB [CGA5L3X8R1E225K160AB]; 179-5501
by TDK
0₫
Mã kho: 1795501
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 µF |
| Voltage | 25 V dc |
| Package/Case | 1206 (3216M) |
| Mounting Type | Surface Mount |
| Dielectric | X8R |
| Tolerance | ±10% |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Automotive Standard | AEC-Q200 |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Series | CGA |
| Maximum Operating Temperature | +150°C |
| Suppression Class | Class 2 |
| Minimum Operating Temperature | -55°C |
