TDK 0603 (1608M) 4.7nF MLCC 50V dc ±5% SMD CGA3E2NP01H472J080AA [CGA3E2NP01H472J080AA]; 179-5584
by TDK
0₫
Mã kho: 1795584
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 nF |
| Voltage | 50 V dc |
| Package/Case | 0603 (1608M) |
| Mounting Type | Surface Mount |
| Dielectric | NP0 |
| Tolerance | ±5% |

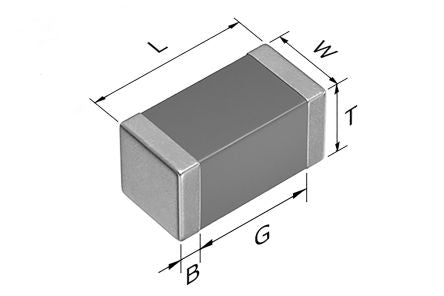

| Dimensions | 1.6 x 0.8 x 0.8mm |
| Length | 1.6mm |
| Automotive Standard | AEC-Q200 |
| Depth | 0.8mm |
| Height | 0.8mm |
| Series | CGA |
| Suppression Class | Class 1 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +150°C |
