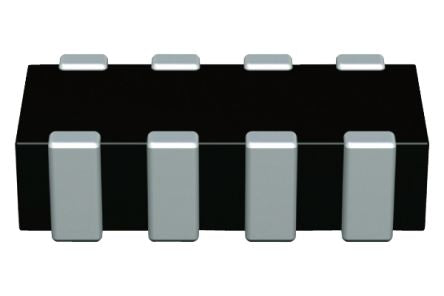

EPCOS High-speed Series 28V 2A 59V Clamp 0508 Ceramic Transient Voltage Suppressor [B72714A8140S160]; 138-9302
by EPCOS
0₫
Mã kho: 1389302
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Varistor Voltage | 28V |
| Series | High-speed |
| Maximum DC Voltage Rating | 16V |
| Maximum AC Voltage Rating | 14V |
| Clamping Voltage | 59V |
| Clamping Current | 1A |
| Package/Case | 0508 (1220M) |
| Maximum Surge Current | 2A |
| Capacitance | 15pF |
| Dimensions | 2 x 1.25 x 0.9mm |
| Depth | 1.25mm |
| Height | 0.9mm |
| Length | 2mm |
