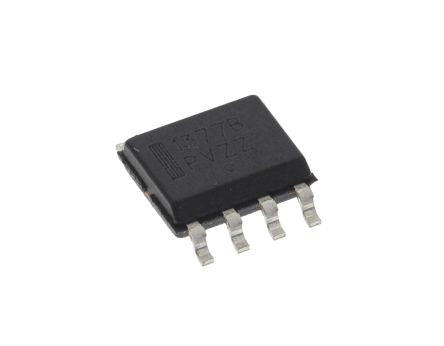

ON Semiconductor NCP1377BDR2G, PWM Current Mode Controller, 500 mA, 60 kHz, 18 V, 8-Pin SOIC [NCP1377BDR2G]; 162-9499
0₫
Mã kho: 1629499
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 1 |
| Control Method | Current |
| Topology | Flyback |
| Rise Time | 40ns |
| Fall Time | 20ns |
| Maximum Switching Frequency | 60 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Output Current | 500 mA |
| Output Voltage | 10 V |
| Dimensions | 5 x 4 x 1.5mm |
| Width | 4mm |
| Typical Operating Supply Voltage | 18 V |
| Length | 5mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.5mm |
