Panduit Wire Routing, Management & Protection, [ST15-075-66GRYL]; PAI407

Name: Panduit Wire Routing, Management & Protection, [ST15-075-66GRYL]; PAI407
Brand: Panduit
SKU: PAI407
Price: 28200.0 VND
Availability: InStock

by Panduit

28.200₫

(Giá chưa VAT).

Mã kho: PAI407

Mã nhà sản xuất: ST15-075-66GRYL

Quy cách đóng gói: 20

Tồn kho: >10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Electrical Tape / Pvc Electrical Tape: Panduit ST15-075-66GRYL

MÔ TẢ SẢN PHẨM

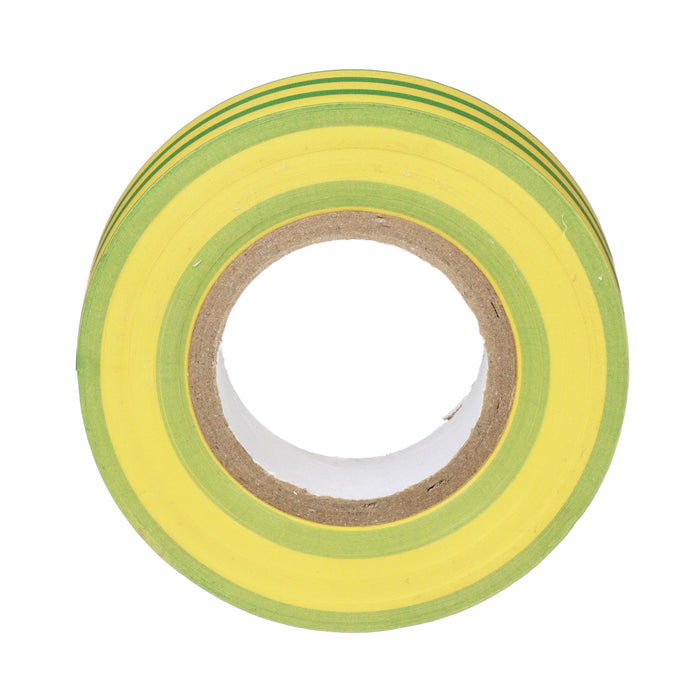

StrongHold ST15-075-66GRYL General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .005”in size.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	StrongHold™
Product Type	General Purpose
Color	Yellow/Green
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.005
Overall Thickness (mm)	0.13
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	66
Overall Length (m)	20.12
Tensile Strength (N/cm)	23.54
Tensile Strength (kg/mm)	0.24
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.75
Adhesion to Steel (oz/in)	16
Adhesion to Backing (N/cm)	1.75
Adhesion to Backing (oz/in)	16
Flammability Rating	GB/T15903-1995 Level 0
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Dielectric Breakdown Voltage (V)	5
Standards Met	Meets UL 510A; Meets RoHS 2002/95/EC directives
Compliance Certifications	UL Listed
Environment	Indoor/Outdoor
Application	Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair
Durability (yr)	5
Tape Style	General Purpose
Adhesive Backing Material	Rubber
