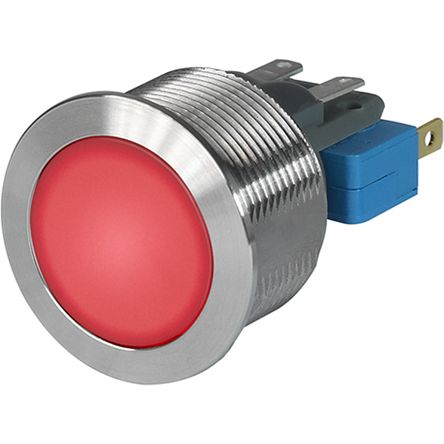

Single Pole Double Throw (SPDT) Momentary Push Button Switch, IP40, IP65, IP67, 22.1 (Dia.)mm, Panel Mount, 250V ac [1241.8520]; 134-6494
by Schurter
0₫
Mã kho: 1346494
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 22.1 (Dia.)mm |
| Panel Cut Out Diameter | 22.1mm |
| LED Colour | Red |
| IP Rating | IP40, IP65, IP67 |
| Actuator Colour | Red |
| Voltage Rating | 250V ac |
| Contact Current Rating | 0.416666666666667 |
| Actuator Shape | Round |
| Terminal Type | Solder Pin |
| Actuator Type | Flat |
| Case Colour | Stainless Steel |
| Contact AC Voltage Rating | 250V |
