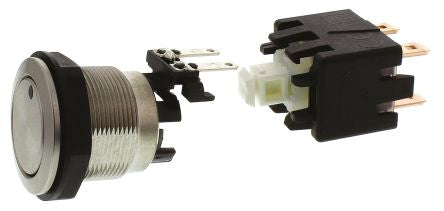

Double Pole Double Throw (DPDT) Latching Push Button Switch, IP64 (Front); IP00 (Rear), 19mm, Panel Mount [1241.6823.1122000]; 173-7937
by Schurter
0₫
Mã kho: 1737937
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 19 (Dia.)mm |
| Panel Cut Out Diameter | 19mm |
| LED Colour | Green |
| IP Rating | IP64 (Front); IP00 (Rear) |
| Actuator Colour | Natural |
| Voltage Rating | 250V ac |
| Contact Current Rating | 12 A @ 250 V ac |
| Actuator Shape | Round |
| Terminal Type | Tab |
| Actuator Type | Button |
