![RS PRO 1758953](http://nguyenxuong.com/cdn/shop/products/F1758316-01_2b44c8f7-d731-43a1-8fc7-dd3231363a36_444x397.jpg?v=1594377036)

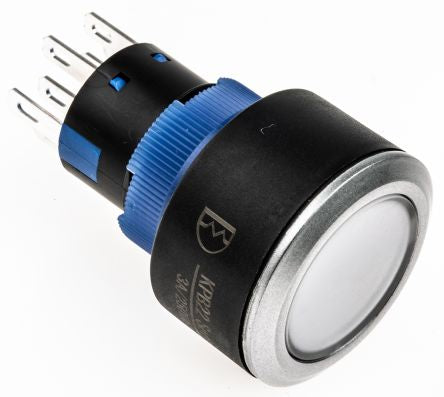

Double Pole Double Throw (DPDT) Lock Push Button Switch, IP65, 22.2 Dia.mm, Panel Mount, 250V ac; 175-8953
by RS PRO
0₫
Mã kho: 1758953
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Panel Mount |
Illuminated | Yes |
Contact Configuration | Double Pole Double Throw (DPDT) |
Panel Cut Out Size | 22.2 (Dia.)mm |
Panel Cut Out Diameter | 22.2mm |
LED Colour | Red |
IP Rating | IP65 |
Actuator Colour | Transparent |
Voltage Rating | 250V ac |
Contact Current Rating | 3 A, 5 A |
Actuator Shape | Flat |
Terminal Type | Solder |
Actuator Type | Push Button |
Contact AC Voltage Rating | 250V |
Case Colour | Silver |
