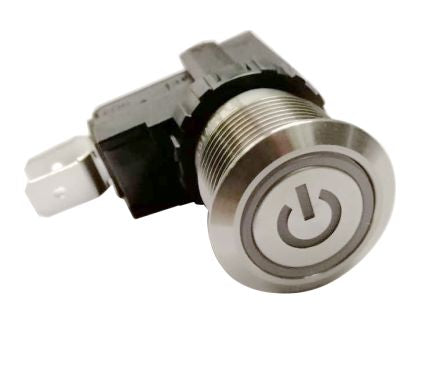

Single Pole Double Throw (SPDT) Lock Push Button Switch, IP67, 19.1 Dia.mm, Panel Mount, Power Symbol, 250 / 125V ac; 175-8060
by RS PRO
0₫
Mã kho: 1758060
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Maintained |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 19.1 (Dia.)mm |
| Panel Cut Out Diameter | 19.1mm |
| IP Rating | IP67 |
| Voltage Rating | 250 / 125V ac |
| Contact Current Rating | 16 A, 26 A |
| Actuator Shape | Flat |
| Terminal Type | Quick Connect |
| Legend | Power Symbol |
| Contact AC Voltage Rating | 250 / 125V |
| Actuator Type | Push Button |
| Case Colour | Natural |
