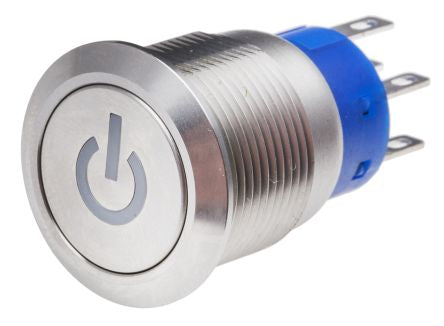

Double Pole Double Throw (DPDT) Latching Push Button Switch, IP67, 19mm, Panel Mount, Power Symbol, 250V ac; 111-5820
by RS PRO
0₫
Mã kho: 1115820
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Switch Operation | Latching |
Mounting Type | Panel Mount |
Illuminated | Yes |
Contact Configuration | Double Pole Double Throw (DPDT) |
Panel Cut Out Size | 19 (Dia.)mm |
Panel Cut Out Diameter | 19mm |
LED Colour | Yellow |
IP Rating | IP67 |
Actuator Colour | Silver |
Voltage Rating | 250V ac |
Contact Current Rating | 0.208333333333333 |
Actuator Shape | Round |
Terminal Type | Solder |
Legend | Power Symbol |
Case Colour | Natural |
Contact AC Voltage Rating | 250V |
Actuator Type | Flat |
