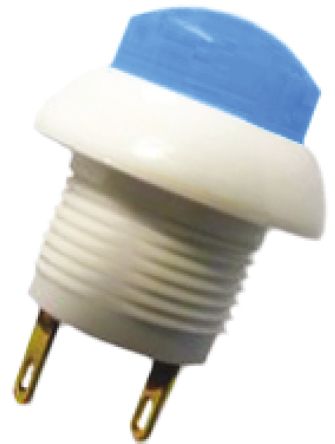

Double Pole Double Throw (DPDT) Momentary Push Button Switch, IP64, 12mm, Panel Mount [P9-213196]; 737-3813
by Otto
0₫
Mã kho: 7373813
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 12 (Dia.)mm |
| Panel Cut Out Diameter | 12mm |
| IP Rating | IP64 |
| Actuator Colour | Blue |
| Voltage Rating | 28V dc |
| Contact Current Rating | 5 A @ 28 V dc |
| Actuator Shape | Dome |
| Terminal Type | Solder |
| Case Colour | White |
| Actuator Type | Button |
