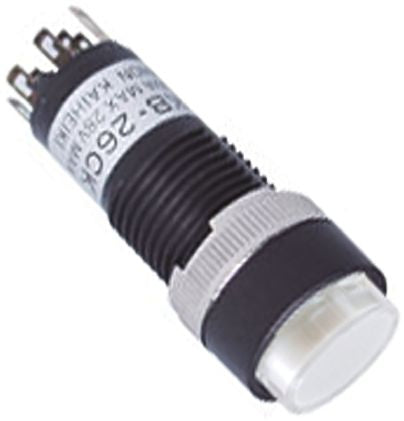

Double Pole Double Throw (DPDT) Latching Push Button Switch, 12.3mm, Panel Mount [KB-26CKS1-59BGNS]; 197-432
by NKK Switches
0₫
Mã kho: 197432
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Switch Operation | Latching |
Mounting Type | Panel Mount |
Illuminated | Yes |
Contact Configuration | Double Pole Double Throw (DPDT) |
Panel Cut Out Size | 12.3 (Dia.)mm |
Panel Cut Out Diameter | 12.3mm |
LED Colour | Blue |
Actuator Colour | White |
Contact Current Rating | 1 A @ 250 V ac, 1 A @ 30 V dc |
Actuator Shape | Round |
Terminal Type | Solder |
Actuator Type | Button |
Case Colour | Black |
