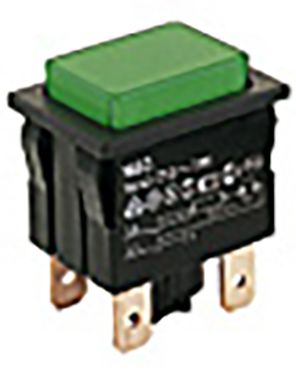

2-pole on-off switch Momentary Push Button Switch, IP40, 30.4 x 22.2mm, Panel Mount, 125V ac [1660.0222]; 907-0326
by Marquardt
0₫
Mã kho: 9070326
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 30.4 x 22.2mm |
| LED Colour | Green |
| IP Rating | IP40 |
| Actuator Colour | Green |
| Voltage Rating | 125V ac |
| Contact Current Rating | 0 |
| Actuator Shape | Square |
| Terminal Type | Quick Connect |
| Case Colour | Black |
| Contact AC Voltage Rating | 125V |
| Actuator Type | Push Button |
