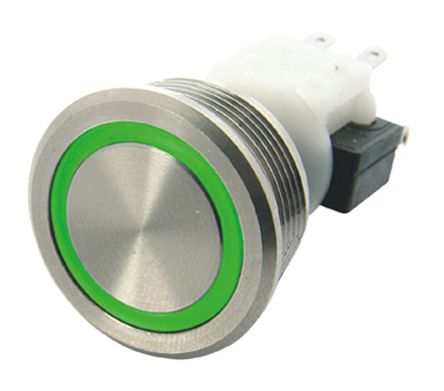

Single Pole Double Throw (SPDT) Latching Push Button Switch, IP67, 19.56mm, Panel Mount, 28 V dc, 125/250 V ac [H48M-212B4044]; 173-8604
by ITW
0₫
Mã kho: 1738604
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 19.56 (Dia.)mm |
| Panel Cut Out Diameter | 19.56mm |
| Series | H48M |
| LED Colour | Blue |
| IP Rating | IP67 |
| Actuator Colour | White |
| Voltage Rating | 250V ac |
| Contact Current Rating | 0.416666666666667 |
| Actuator Shape | Round |
| Terminal Type | Solder |
| Contact DC Voltage Rating | 28V |
| Case Colour | Stainless Steel |
| Contact AC Voltage Rating | 250V |
| Actuator Type | Button |
