![ITW 76-9420/439088G 665988](http://nguyenxuong.com/cdn/shop/products/R352884-04_4026364f-f628-4583-859b-c38a452db41c_444x326.jpg?v=1594307562)

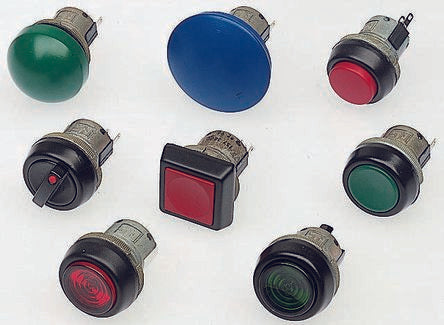

SPDT-NO/NC Push Button Switch, Panel Mount [76-9420/439088G]; 665-988
by ITW
0₫
Mã kho: 665988
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SPDT-NO/NC |
Mounting Type | Panel Mount |
Contact Current Rating | 10.1 A @ 250 V ac |
Illuminated | Yes |
Actuator Colour | Green |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +135°C |
Actuator Type | Button |
Maximum Operating Temperature | +135°C |
Terminal Type | Solder, Tab |
Contact Material | Fine Silver |
