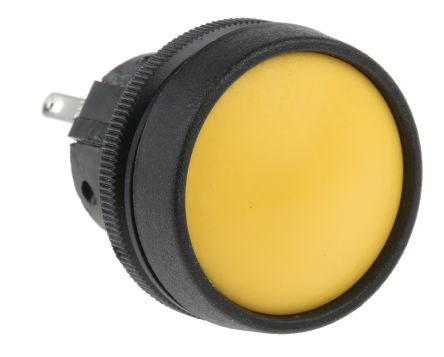

SP-NO/NC Momentary Push Button Switch, IP67, Panel Mount [76-9115/439088]; 350-311
by ITW
0₫
Mã kho: 350311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 22.5 (Dia.)mm |
| Panel Cut Out Diameter | 22.5mm |
| Series | 76-91 |
| LED Colour | Clear |
| IP Rating | IP67 |
| Actuator Colour | Yellow |
| Voltage Rating | 250V ac |
| Contact Current Rating | 10 A @ 250 V ac |
| Actuator Shape | Round |
| Terminal Type | Solder |
| Contact DC Voltage Rating | 5V |
| Contact AC Voltage Rating | 250V |
| Case Colour | Stainless Steel |
| Actuator Type | Button |
