![ITW 49-59113 198242](http://nguyenxuong.com/cdn/shop/products/F0198242-01_444x444.jpg?v=1594034156)

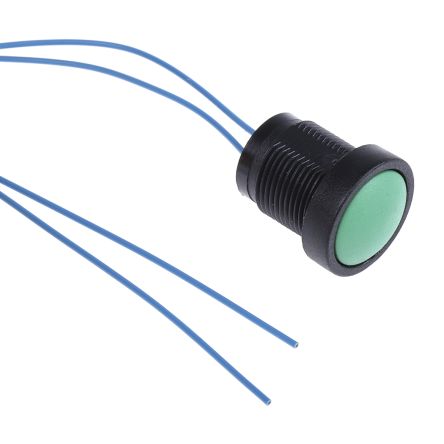

Single Pole Double Throw (SPDT) Momentary Push Button Switch, IP67, Panel Mount [49-59113]; 198-242
by ITW
0₫
Mã kho: 198242
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Switch Operation | Momentary |
Mounting Type | Panel Mount |
Illuminated | No |
Contact Configuration | Single Pole Double Throw (SPDT) |
Panel Cut Out Size | 16 (Dia.)mm |
Panel Cut Out Diameter | 16mm |
LED Colour | Clear |
Series | 49-59 |
IP Rating | IP67 |
Actuator Colour | Green |
Voltage Rating | 250V ac |
Contact Current Rating | 400 mA @ 32 V ac |
Actuator Shape | Round |
Terminal Type | Wire Lead |
Actuator Type | Button |
Contact DC Voltage Rating | 50V |
Case Colour | Black |
Contact AC Voltage Rating | 250V |
