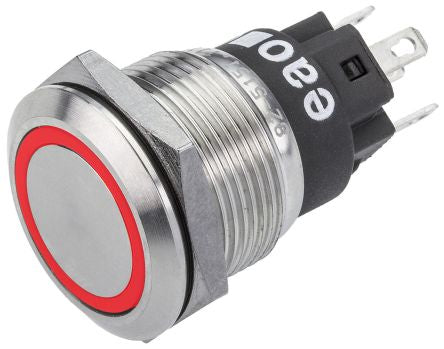

Single Pole Double Throw (SPDT) Momentary Push Button Switch, IK10, IP65, IP67, 19 (Dia.)mm, Panel Mount, 12V ac/dc [82-5153.1113]; 124-4513
by EAO
0₫
Mã kho: 1244513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 19 (Dia.)mm |
| Panel Cut Out Diameter | 19mm |
| LED Colour | Red |
| IP Rating | IK10, IP65, IP67 |
| Actuator Colour | Silver |
| Voltage Rating | 12V ac/dc |
| Contact Current Rating | 200 mA |
| Actuator Shape | Round |
| Terminal Type | Solder |
| Actuator Type | Flush |
| Contact AC Voltage Rating | 24V |
| Case Colour | Stainless Steel |
| Contact DC Voltage Rating | 24V |
