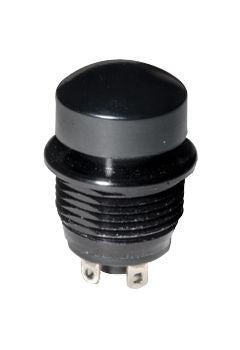

Single Pole Double Throw (SPDT) Momentary Push Button Switch, IP68, 12.3 x 11mm, Panel Mount, 32V dc [NP8S2T202GE]; 154-6140
by C & K
0₫
Mã kho: 1546140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Panel Cut Out Size | 12.3 (Dia.) x 11mm |
| Panel Cut Out Diameter | 12.3mm |
| IP Rating | IP68 |
| Actuator Colour | Black |
| Voltage Rating | 32V dc |
| Contact Current Rating | 1 A @ 32 V dc |
| Actuator Shape | Round |
| Terminal Type | PC Pin |
| Contact DC Voltage Rating | 32V |
| Actuator Type | Push Button |
| Case Colour | Black |
