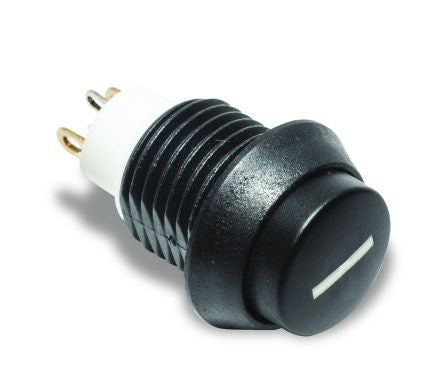

1-pole on-off switch Momentary Push Button Switch, IP67, 13.7 (Dia.) x 13mm, Panel Mount, Minus (Symbol), 24V dc [APB4E07TZBE010]; 161-2339
by C & K
0₫
Mã kho: 1612339
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Momentary |
| Mounting Type | Panel Mount |
| Illuminated | Yes |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Panel Cut Out Size | 13.7 (Dia.)mm |
| Panel Cut Out Diameter | 13.7mm |
| LED Colour | Blue |
| IP Rating | IP67 |
| Actuator Colour | Black |
| Voltage Rating | 24V dc |
| Contact Current Rating | 200 mA @ 24 V dc |
| Actuator Shape | Round |
| Terminal Type | Solder |
| Actuator Type | Push Button |
| Case Colour | Black |
| Legend | Minus (Symbol) |
| Contact DC Voltage Rating | 24V |
