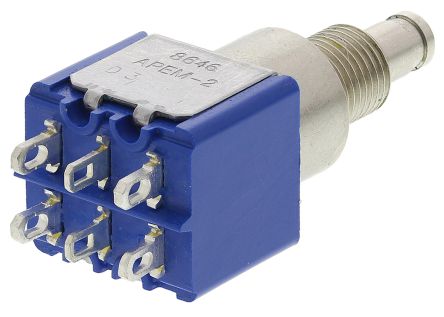

Double Pole Double Throw (DPDT) Latching Miniature Push Button Switch, Panel Mount [8646A]; 103-5776
by APEM
0₫
Mã kho: 1035776
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Panel Cut Out Size | 6.5 (Dia.)mm |
| Panel Cut Out Diameter | 6.5mm |
| Voltage Rating | 250V ac |
| Contact Current Rating | 4 A@ 30 V dc |
| Actuator Shape | Cylinder |
| Terminal Type | Solder |
| Actuator Type | Plunger |
