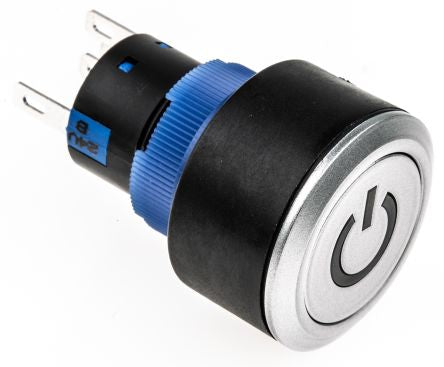

Single Pole Double Throw (SPDT) Lock Push Button Switch, IP65, 22.2 Dia.mm, Panel Mount, Power Symbol, 250V ac; 175-9028
by RS PRO
0₫
Mã kho: 1759028
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Panel Mount |
Illuminated | Yes |
Contact Configuration | Single Pole Double Throw (SPDT) |
Panel Cut Out Size | 22.2 (Dia.)mm |
Panel Cut Out Diameter | 22.2mm |
LED Colour | Blue |
IP Rating | IP65 |
Actuator Colour | Silver |
Voltage Rating | 250V ac |
Contact Current Rating | 3 A, 5 A |
Actuator Shape | Flat |
Terminal Type | Solder |
Actuator Type | Push Button |
Contact AC Voltage Rating | 250V |
Case Colour | Silver |
Legend | Power Symbol |
