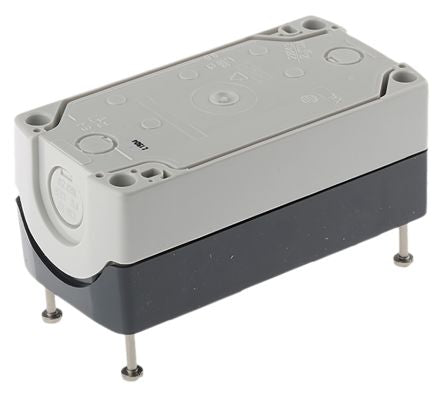

Schneider Electric Harmony XALD Enclosed Push Button, IP66, IP67, IP69, IP69K 62mm 104mm +70°C -25°C 68mm [XALD334]; 609-4657
0₫
Mã kho: 6094657
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | Harmony XALD |
| IP Rating | IP66, IP67, IP69, IP69K |
| Cutout Diameter | 22mm |
| Push Button Actuation | Spring Return |
| Length | 104mm |
| Width | 68mm |
| Depth | 62mm |
| Minimum Operating Temperature | -25°C |
| Maximum AC Voltage | 600V |
| Maximum Operating Temperature | +70°C |
| Maximum Current | 6 A ac, 550 mA dc |
| Maximum DC Voltage | 600V |
| Terminal Type | Screw |
