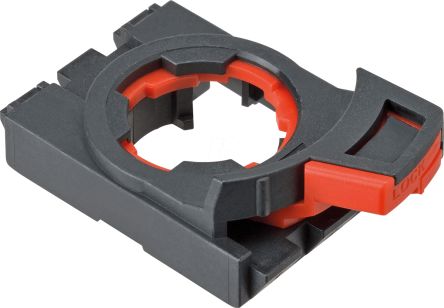

Omron A22N Push Button Enclosure, 1 Hole, 22mm Diameter [A22NZ-H-02]; 174-4231
by Omron
0₫
Mã kho: 1744231
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | A22N |
| Cutout Diameter | 22mm |
| Number of Cutouts | 1 |
| IP Rating | IP65 |
| Length | 51.3mm |
| Width | 30mm |
| Depth | 17.1mm |
| Maximum Operating Temperature | +55 °C, +70 °C |
| Minimum Operating Temperature | -20°C |
| Dimensions | 51.3 x 30 x 17.1 mm |
| Operating Temperature Range | -20 → +55 °C, -20 → +70 °C |
| For Use With | A22E Pushbutton Switches, A22NE-P Pushbutton Switches |
