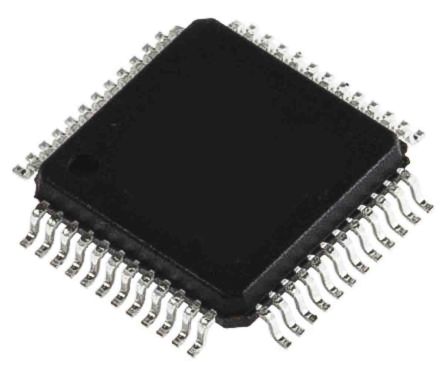

STMicroelectronics, STM32L031C6T6 [STM32L031C6T6]; 189-3871
0₫
Mã kho: 1893871
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32L |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 8 kB |
| ADC Channels | 10 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.65 → 3.6 V |
| Program Memory Type | Flash |
| Length | 7.1mm |
| ADCs | 1 (10 x 12 bit) |
| Number of I2C Channels | 1 |
| Number of ADC Units | 1 |
| Number of UART Channels | 1 |
| Number of Timers | 1 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 12bit |
| Dimensions | 7.1 x 7.1 x 0.6mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (4 x 16 bit) |
| Number of USART Channels | 1 |
| Timer Resolution | 16bit |
| Height | 0.6mm |
| Instruction Set Architecture | RISC |
| Width | 7.1mm |
