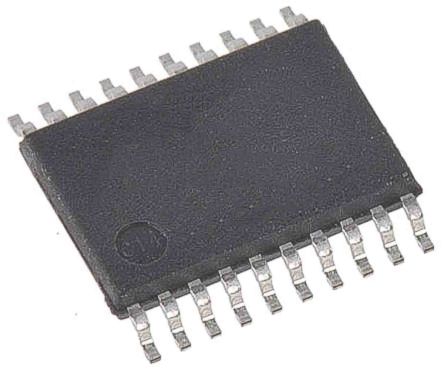

STM32F042F6P6TR, 32BIT MICROCONTROLLER [STM32F042F6P6TR]; 192-0943
0₫
Mã kho: 1920943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | STM32 |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | ARM Cortex M0 |
| Data Bus Width | 32bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 6 kB |
| USB Channels | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| Length | 6.6mm |
| ADCs | 1 (12 x 12 bit) |
| Program Memory Type | Flash |
| Width | 4.5mm |
| Maximum Operating Temperature | +85 °C |
| Timer Resolution | 16 bit, 32 bit |
| Number of ADC Units | 1 |
| ADC Resolution | 12bit |
| Number of CAN Channels | 1 |
| Instruction Set Architecture | RISC |
| Height | 1.05mm |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Number of USART Channels | 2 |
