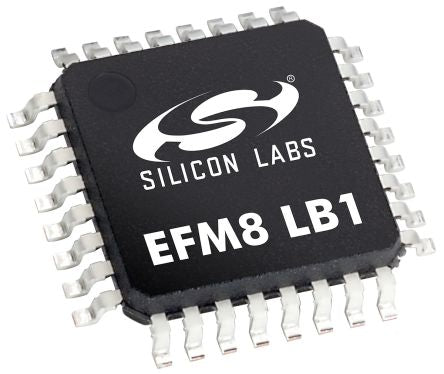

Silicon Labs EFM8LB12F64E-B-QFP32, 8bit CIP-51 Microcontroller, 72MHz, 64 kB Flash, 32-Pin QFP [EFM8LB12F64E-B-QFP32]; 915-8763
by Silicon Labs
0₫
Mã kho: 9158763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | EFM8LB1 |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | CIP-51 |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 72MHz |
| RAM Size | 4.352 kB |
| ADC Channels | 20 |
| Typical Operating Supply Voltage | 2.2 → 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | Pipelined |
| ADC Resolution | 14bit |
| Number of Timers | 6 |
| Program Memory Type | Flash |
| Dimensions | 7 x 7 x 1.05mm |
| Timers | 6 x 16 bit |
| Data Rate | 12Mbps |
| Width | 7mm |
| Height | 1.05mm |
| Timer Resolution | 16bit |
| ADCs | 1 (20 x 14 bit) |
| Length | 7mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
