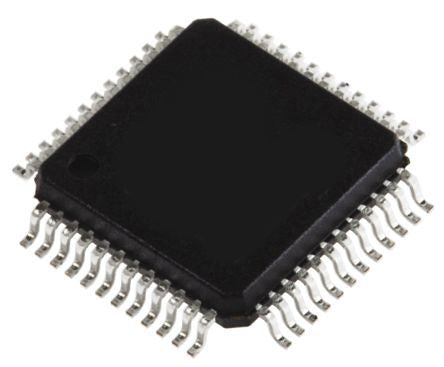

RX23T 128KB/12KB 48LQFP -40_+85C [R5F523T5ADFL#30]; 192-8112
0₫
Mã kho: 1928112
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | RX23T |
| Package Type | LFQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | RX CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 12 kB |
| ADC Channels | 10 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 2 |
| Length | 7.1mm |
| ADCs | 1 (10 x 12 bit) |
| Number of Timers | 4, 10 |
| Height | 1.4mm |
| PWM Channels | 16 |
| Width | 7.1mm |
| ADC Resolution | 12bit |
| Timers | 1 (10 x 16 bit), 1 (4 x 8 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 7.1 x 7.1 x 1.4mm |
| Timer Resolution | 8 bit, 16 bit |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Instruction Set Architecture | CISC Harvard |
| Number of I2C Channels | 3 |
