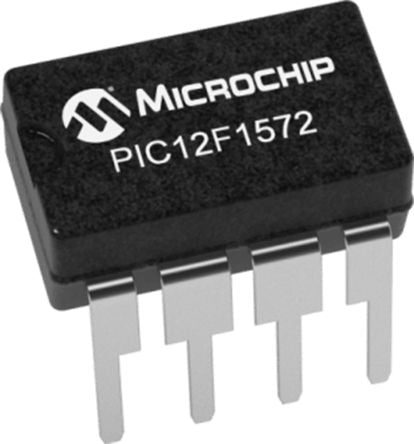

Microchip Technology PIC12LF1572-I/MS, 8bit Microcontroller, 32MHz, 2 kwords Flash, 8-Pin MSOP [PIC12LF1572-I/MS]; 177-0504
by Microchip
0₫
Mã kho: 1770504
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC12LF |
| Package Type | MSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Data Bus Width | 8bit |
| Program Memory Size | 2 kwords |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (4 x 10 bit) |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| Program Memory Type | Flash |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 2 |
| Number of ADC Units | 1 |
| Height | 0.95mm |
| PWM Channels | 3 |
| Width | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
