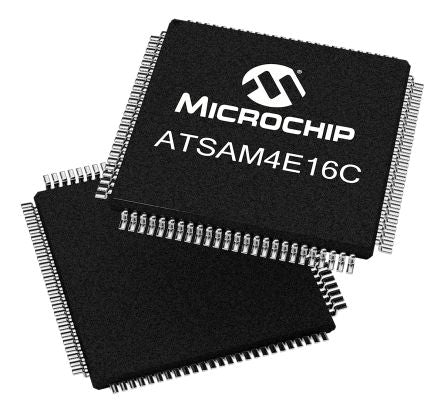

Microchip Technology ATSAM4E16CA-AU, 32bit ARM Cortex M4 MCU, 120MHz, 1.024 MB Flash, 100-Pin LQFP [ATSAM4E16CA-AU]; 131-1192
by Microchip
0₫
Mã kho: 1311192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAM4E |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Typical Operating Supply Voltage | 1.2 V, 3.3 V |
| Length | 9mm |
| ADCs | 1(2 x 12 bit) |
| Timer Resolution | 32bit |
| Height | 0.75mm |
| PWM Channels | 4 |
| Width | 9mm |
| Timers | 1(9 x 32 bit) |
| Dimensions | 9 x 9 x 0.75mm |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
