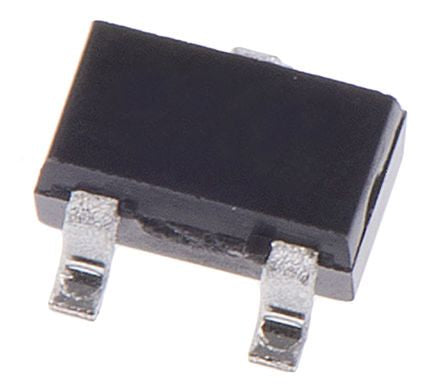

ON Semiconductor MAX803SQ438T1G, Processor Supervisor 4.38V 3-Pin, SC-70 [MAX803SQ438T1G]; 145-4243
0₫
Mã kho: 1454243
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Supervisors | 1 |
| Output Driver | Active Low, Open Drain |
| Nominal Monitored Voltage | 4.38V |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 3 |
| Battery Backup Switching | Yes |
| Maximum Reset Active Time | 460ms |
| Dimensions | 2.2 x 1.35 x 0.9mm |
| Height | 0.9mm |
| Maximum Monitored Voltage | 4.49V |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 2.2mm |
| Maximum Operating Temperature | +105 °C |
| Minimum Monitored Voltage | 4.38V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 1.2 V |
| Width | 1.35mm |
