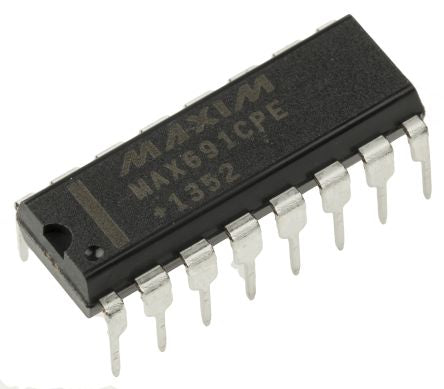

Maxim MAX691CPE+, Processor Supervisor 4.65V, WDT 16-Pin, PDIP [MAX691CPE+]; 146-1134
0₫
Mã kho: 1461134
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Supervisors | 1 |
| Output Driver | Active High, Active Low, Push-Pull |
| Watchdog Timer | Yes |
| Power Fail Detection | Yes |
| Chip Enable Signals | Yes |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Battery Backup Switching | Yes |
| Maximum Reset Active Time | 70ms |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Height | 4.45mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Monitored Voltage | 4.65V |
| Length | 19.43mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 4.75 V |
| Maximum Monitored Voltage | 4.75V |
| Width | 7.87mm |
