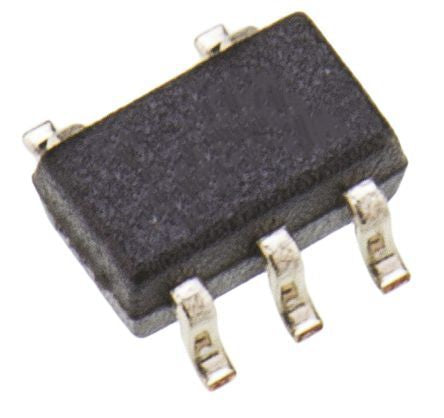

5-Pin Watchdog Timer Circuit [MAX6814XK+T]; 190-4853
0₫
Mã kho: 1904853
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Supervisors | 1 |
| Output Driver | Active Low, Push-Pull |
| Watchdog Timer | Yes |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 5 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Maximum Operating Temperature | +85 °C |
| Width | 1.35mm |
| Minimum Operating Supply Voltage | 2.25 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 2.2mm |
