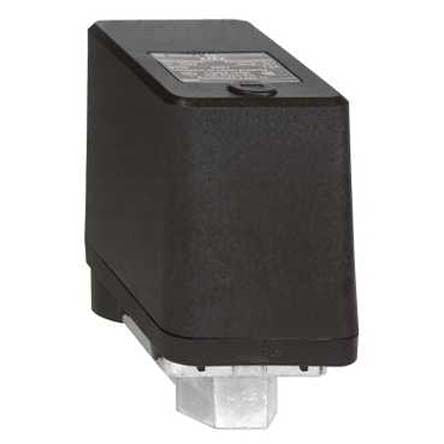

Telemecanique Sensors Air, Fresh Water, Sea Water Pressure Switch, 1 C/O 1 → 6bar, 240 V ac, 250 V dc [XMXA06L2135]; 135-3788
0₫
Mã kho: 1353788
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pressure Range | 1 → 6bar |
| Media Measured | Air, Fresh Water, Sea Water |
| Output Type | 1 C/O |
| Supply Voltage | 240 V ac, 250 V dc |
| Minimum Pressure Reading | 1bar |
| Maximum Pressure Reading | 6bar |
| Electrical Connection | Screw Clamp |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Accuracy | 0.035 |
| Maximum Current | 3 A @ 120 V ac, 100 mA @ 250 V dc |
| Mounting Type | Panel Mount |
| IP Rating | IP54 |
| Housing Material | Glass Fibre Reinforced Polycarbonate |
